Central AC Repair in Dubai: Ducted System Diagnostics & Solutions

SAAD MAAZ HVAC Engineering Team

Written by Saad Maaz (Lead HVAC Specialist) • Updated May 26, 2026 • 14 Min Read

Is Your Central AC Blowing Warm Air?

Don't let your entire villa heat up. Our specialized ducted AC technicians are ready to dispatch.

1. Ducted Split vs. Standard Split: The Diagnostic Difference

The fundamental refrigeration cycle (compressor, condenser, expansion valve, evaporator) is identical in both systems. The difference lies in scale and air distribution. A standard split AC might be 1.5 to 2 tons. A central ducted split can range from 3 to 10 tons.

Because the indoor unit is concealed above a false ceiling, homeowners cannot easily see if the filter is dirty or if the coil is freezing. We must utilize access hatches to reach the machine. Furthermore, because one machine cools a large area, it relies on high-static-pressure blower motors and extensive ductwork. A leak in the ductwork in the attic space means you are paying DEWA to air-condition your roof cavity while your bedroom remains hot.

2. Solving Weak Airflow & Clogged Ducts

The most frequent complaint we receive for central ACs in Dubai is: "The AC is on, but I can barely feel any air coming out of the ceiling vents."

This is almost always an airflow restriction issue. Central ACs have large, flat panel filters located at the return air grille (usually a large slotted vent in the hallway ceiling). Because they pull air from the entire house, they clog with dust, pet dander, and microscopic sand rapidly. When the filter blocks, the massive blower motor struggles to pull air. This causes the evaporator coil to drop below freezing, turning into a solid block of ice, further choking off the air supply.

Ductwork Integrity Checks: If the filters are clean but airflow is still weak in only one room, the problem is ductwork. Flexible ducts can be crushed by careless maintenance workers in the ceiling, or the insulated foil can tear, causing the inner duct to collapse under negative pressure. Our technicians perform visual attic inspections to re-secure, tape, and suspend crushed ducting.

Weak Airflow from Vents?

Your system might be freezing up or your ducts could be crushed. Let us perform a deep inspection.

3. Dangerous Ceiling Water Leaks & Drain Pan Overflows

A water leak from a wall-mounted AC is annoying. A water leak from a concealed ducted AC is disastrous. It can destroy expensive gypsum ceilings, cause mold growth in the attic, and short out lighting fixtures.

Ducted units produce gallons of condensation daily. This water drips into a galvanized or plastic primary drain pan. If the PVC drain line running out of the building gets clogged with algae or desert dust sludge, the pan overflows directly onto the ceiling below. In premium installations, a secondary drain pan and a float switch are installed to shut off the AC before it overflows, but many contractor-grade installations in Dubai lack this safety feature.

Our repair involves using industrial wet-vacuums and compressed nitrogen to blow out the entire length of the PVC drain line, chemically cleaning the primary drain pan, and ensuring the unit is pitched correctly for gravity drainage.

4. 3-Phase Power & Compressor Tripping Issues

Unlike small 1.5-ton units that use standard 220V single-phase electricity, large central AC compressors (4 to 10 tons) often utilize 3-phase power (380-415V). This requires specialized electrical knowledge.

If a 3-phase compressor loses one phase (due to a burned wire or bad breaker), it experiences "single-phasing." It will draw massive amperage, shudder violently, and quickly burn out its internal motor windings if the thermal overload does not trip in time. Central ACs also rely on heavy-duty 3-pole contactors to switch this massive power. The contact points on these switches pit and carbonize over time, creating electrical resistance and extreme heat. Replacing burnt contactors and swollen run capacitors is a staple of our central AC repair service in Dubai.

5. Thermostat Wiring & Zone Control Failures

Central ACs are controlled by wall-mounted thermostats sending 24V (low voltage) signals to the indoor unit's control board. If the thermostat display is blank, it usually means the 24V transformer in the ceiling unit has blown, often due to a shorted contactor outside or a blown 3-amp blade fuse on the PCB.

For homes with VAV (Variable Air Volume) boxes or motorized zone dampers (where one machine cools multiple rooms, but you have a thermostat in each room), a failure in the damper actuator motor can leave one room freezing and another room boiling. We troubleshoot the low-voltage communication wire continuity to find the exact point of failure.

Central AC Repair Cost Table (2026 Slabs)

Repairing high-tonnage ducted systems requires commercial-grade parts and extended diagnostic time. Here is our transparent pricing structure for central AC repairs:

Hyperlocal Focus: Villa Communities like Mirdif & Rashidiya

Central ducted systems are incredibly prevalent in sprawling villa communities such as Mirdif, Rashidiya, and Warsan. These older and newer developments often utilize large rooftop package units or multi-ton split ducted systems.

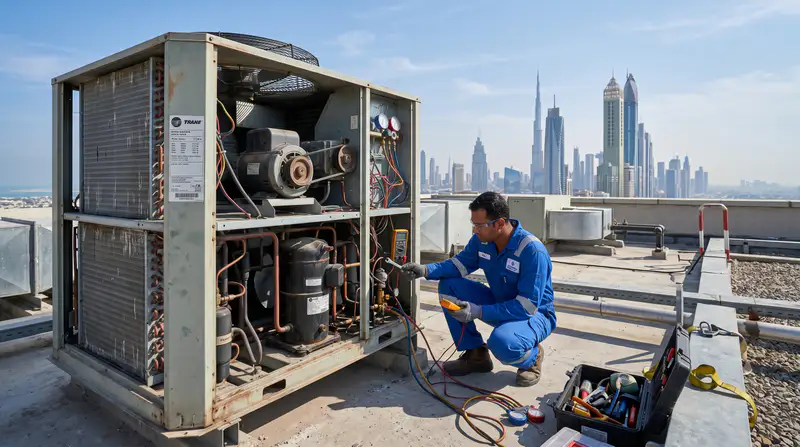

Because the outdoor units are exposed to direct sunlight on flat roofs without shade, their condenser coils suffer from extreme UV and heat baking, alongside heavy sand accumulation. Our mobile teams servicing these areas carry specialized long-hose chemical wash rigs to deep-clean rooftop condenser coils, ensuring head pressures remain stable even during 48°C peak afternoons.

About The Author: Saad Maaz

Lead Commercial HVAC Field Director

Saad Maaz is the Technical Operations Director at SAAD MAAZ Technical Services LLC. With extensive hands-on experience troubleshooting multi-ton package units, VRF systems, and concealed ducted splits across Dubai's premium villa communities, he is a leading authority on commercial-grade HVAC diagnostics and energy-efficient repair protocols.
